Flexible video endoscope

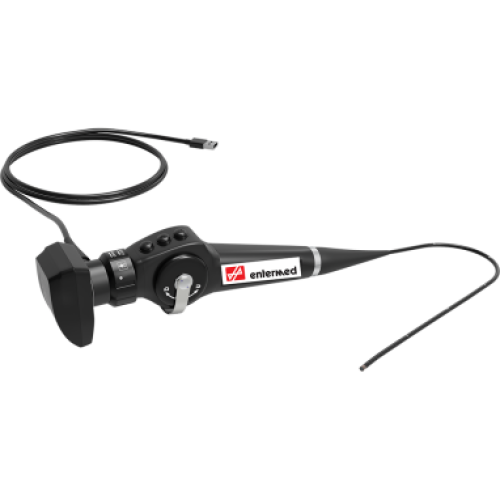

Flexible video endoscope

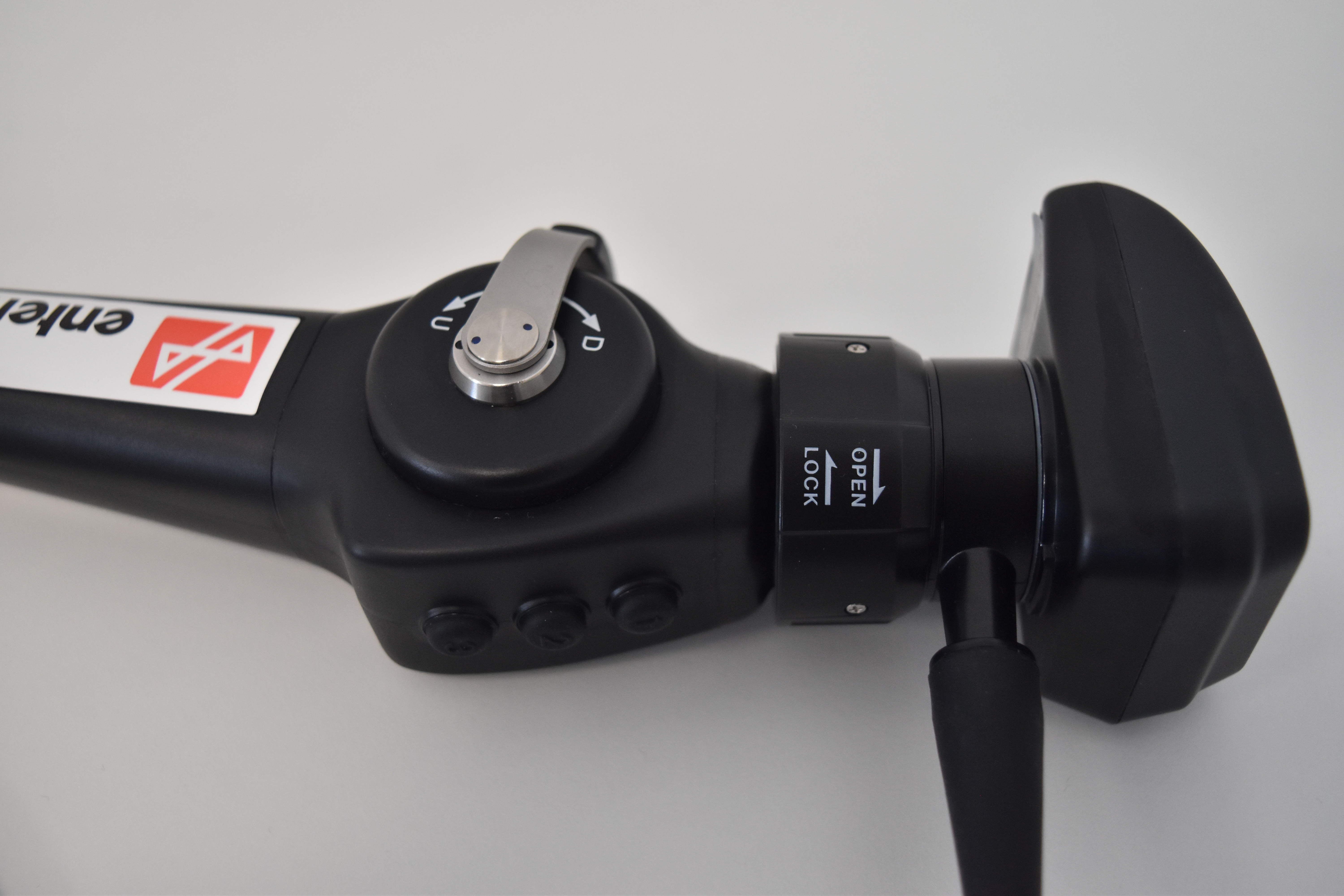

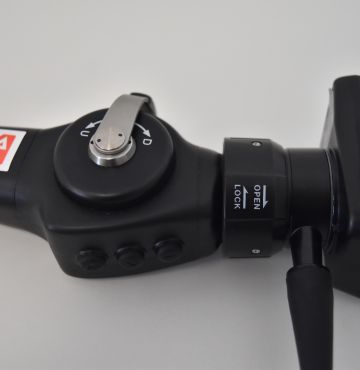

The flexible video naso-pharyngo-laryngoscope has a tiny image sensor built into the tip of its distal end. It works with Windows PCs with a USB3.0 or later port. Its movement runs smoothly and it is ergonomically designed with its three buttons for switching the scope on and off and one for activating automatic white balance and the third one for freezing the live picture. It also has an LED incorporated in the distal end. The combination of an image sensor and LED replace the need for fibre optics, which are fragile and reduce picture and light quality significantly.

Contact us downloadProduct information
Benefits at a glance

Benefits at a glance

  • HD resolution for superior picture quality
  • CMOS image sensor built into tip
  • LED built into tip
  • Fibreless design
  • Integral USB cable for connection to USB port
  • Soakable with cap in place
  • Can be placed in an Automated Endoscope Reprocessor

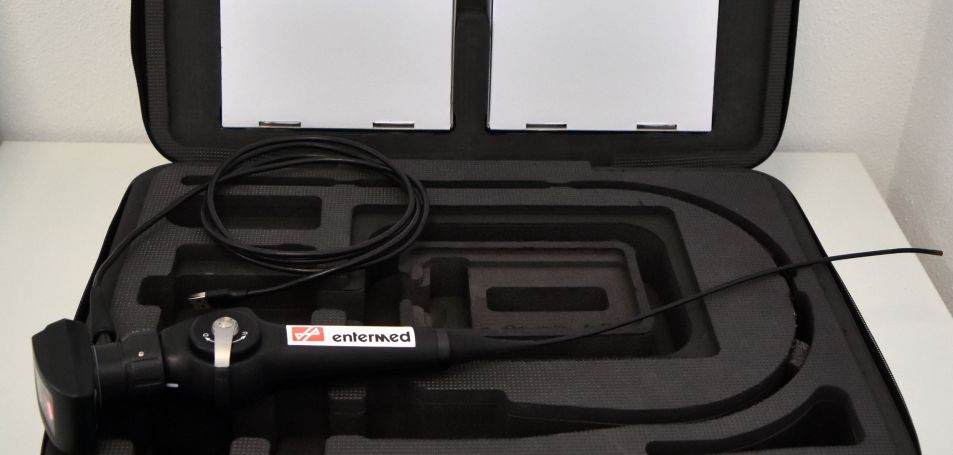

The flexibele video rhino-laryngo-pharyngoscope is supplied in a carrying case with a leak tester and sealing cap.

Technical specifications

Distal end diameter

3.4 mm

Working length

300 mm

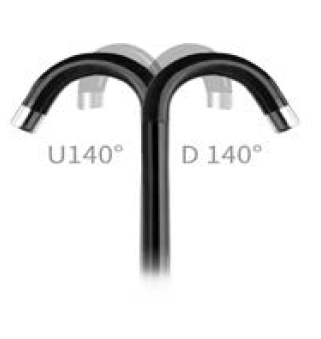

Bending

140 °/140 °

Field of view

100 °

Depth of field

3-100 mm

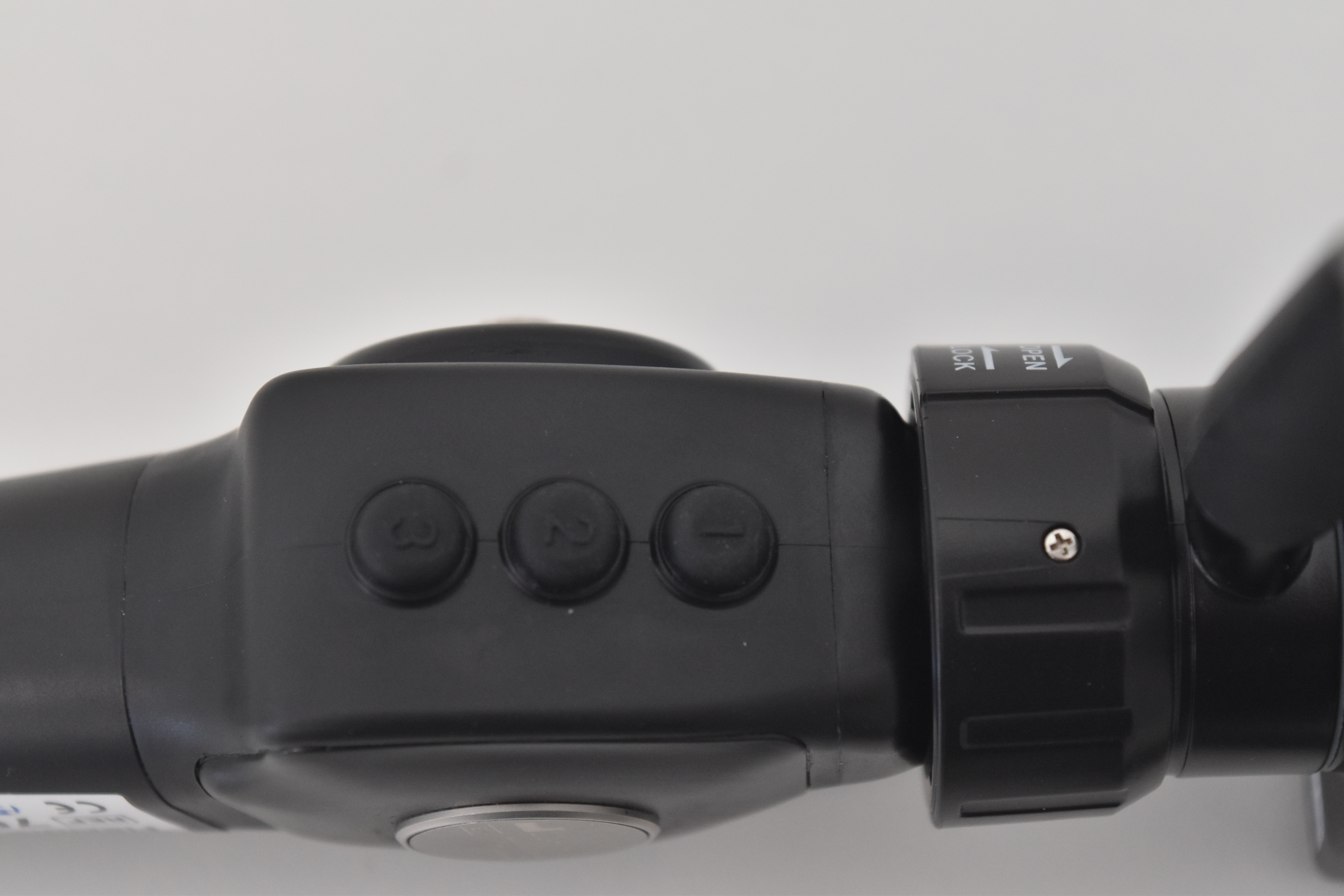

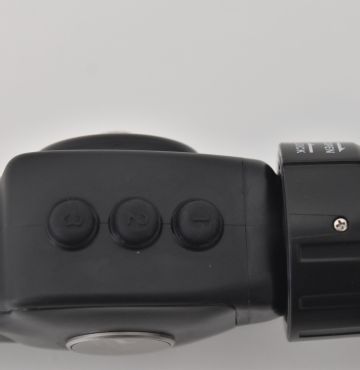

Buttons for

white balance, LED on/off, freeze
